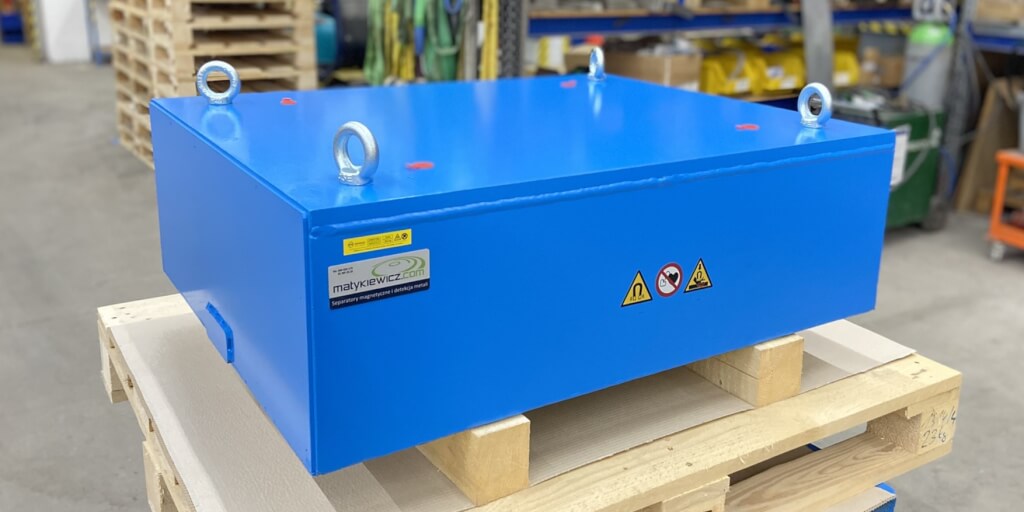

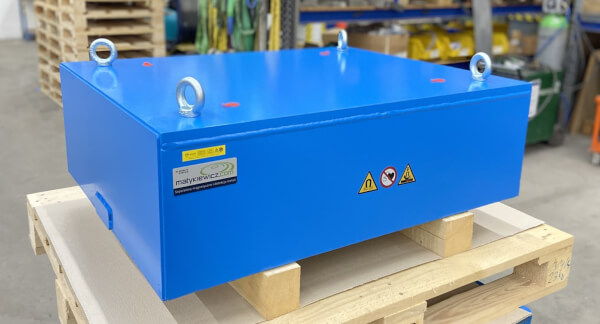

Permanent magnet block for processing of gravel

Machine type: SVMF071000 – permanent magnetic block

Parameters: Ferrite magnetic system

Dimensions 785 x 1 000 x 313 mm, weight 970 kg, for a conveyor belt width of approx. 800 mm; the unit is equipped with lifting eyes.

Application:

Permanent magnetic blocks suspended above the conveyor belt carrying the processed material will protect downstream processing equipment during aggregate recycling from damage caused by accidentally present iron objects. We have supplied two of these to a customer of our partner MATYKIEWICZ.COM.

They are suitable when the amount of iron that may be present in the material on the conveyor belt is small. Cleaning is done manually, depending on the amount of metal captured. These magnetic systems do not require a power source, making them suitable even for locations where access to electricity is limited. Ferrite blocks are cost-effective and require minimal maintenance.

If you have any questions, please contact us.
